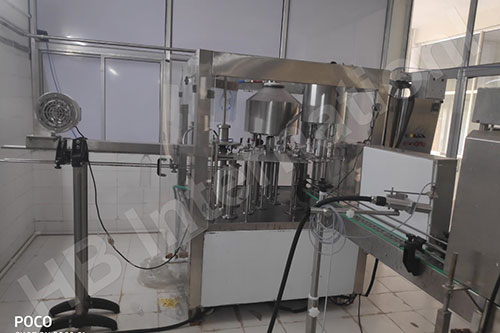

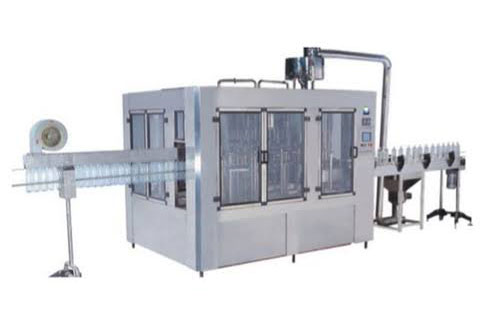

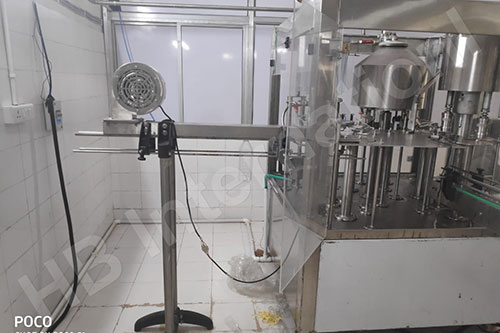

Bottling machine
We Are Manufacurer AUTO & SEMI-AUTO Bottling Machine That Produce 60-200 Bottle Per Minute.
Salient Features
- Machine over load protection with mechanical clutch +VFD Protection
- Bottle Catching & all star wheels below the neck only
- Instruction & Indications Systems
- All Machine parts With CNC Made
- Programmable Logic Controls
- Rinsing Water pressure Interlock
- Filling Water Tank low & High Level Inter lock
- Cap feeder Cap empty single
- Bottle Filling Level Set with Mechanical vent tube
- In feed air blower conveyor SS 304 Hepa Filter with UV
- All material SS 304 & contact Parts SS 316
- Cap Hopper Elevator type & having capacity of 3000 caps at a time
- Out Conveyor SS 304 , conveyor belt also SS 304
- Oil Central Lubrication Systems
- Pneumatic :- Festo OR SMC of Janatics
| Machine Overall Detail | |
|---|---|
| Main motor | 2 Hp |
| Conveyor motor | 1 Hp |
| Air conveyor | 1 Hp |
| Shrink tunnel | 4 Kw. |
| Cap Elevator | 0.5 HP |
| Filling Tank Capacity | 180-200 Litter. |
| Washing and Filling Pump | 0.5 Hp |
| Washing and Filling Pump Make | Lube , C.R.I , CNF etc. |
| Filling Range | 200 ml To 1000 ml. |
| Machine Out Put | As per client Requrement |
| Main Motor Make | Rotomotive, C.G, Bonvareo etc. |
| Gearbox Make | Chamunda, Rotomotive etc. |
| H.M.I and P.L.C Make | Delta, Kinko etc. |
| Electric Component make | Select, Semen’s etc. |
| Machine Dimension | 2620 mm x 1800 mm x 2550 mm |
